60Hz Cost-effective Liquid Crystal Spatial Light Modulator
The HDSLM64R series liquid crystal spatial light modulator employs a high-stability LCoS chip as the core optical modulation device, featuring 1080P high-definition high resolution, compact appearance and tight structure for easy integration.
Features
- Reflective optical addressing spatial light modulator(SLM)
- Phase type/Amplitude type
- Panel resolution: 1920 x 1080 (WUXGA)
- 420 – 700 nm operating wavelengths
- 8 bit only
- Small size
- Compact structure
- Provided with a moderate price
Application
- Optical field manipulation
- Holographic projection
- Development of commercial projection device
- Development of holographic module
- Generating vortex beams
- 3D display
- Holography reconstruction
- Laser manipulation
- Multi-spectral imaging
- Physical optical experiments
- Development of AR device
- Computational imaging and coherent diffraction
- Enabling projection imaging and structured light
Specifications
| Type | HDSLM64R | HDSLM64RA |
| Resolution | 1920*1080 | |
| Wavelength | 400-700 nm | |
| Panel Active Area | 12.29 mm*6.91 mm | |
| Pixel Size | 6.37 μm | |
| Fill Factor | > 93% | |
| Phase Retardance | > 3π@532 nm | / |
| Reflectance | 75% | / |
| Diffraction Efficiency | 78%@8 step | / |
| Amplitude Contrast | / | 200:1 |
| Bit Depth | 8 bit | |
| Frame Rate | 60 Hz | |
| Phase Stability | ~ 0.005π | / |
| Sync Output Trigger High Level Signal | / | |
| Sync Output Trigger Pulse Width | / | |
| Interface/PC Connection | Mini HDMI, USB 2.0 | |

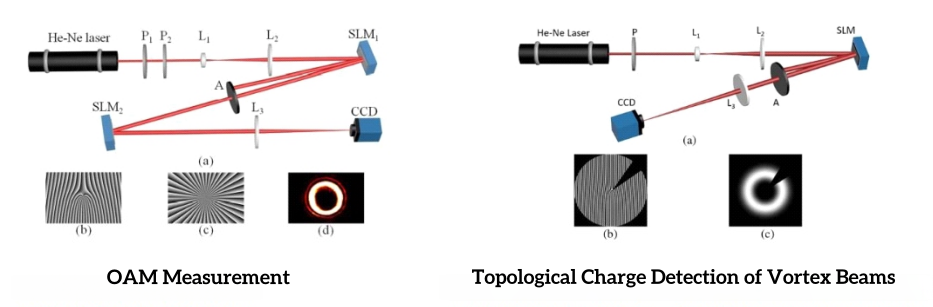

Case Images
