BK7 Dielectric Right-Angle Prism Mirror, Hypotenuse Coated

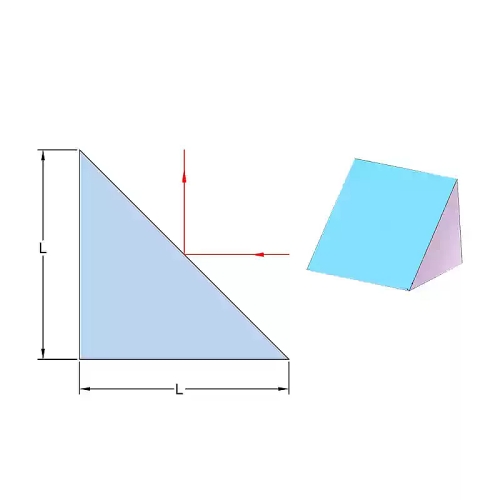

Tuniu broadband dielectric film right angle prism mirrors enable precise beam deflection and calibration across the visible to near-infrared spectrum, available for two wavelength ranges: 400–750 nm and 750–1100 nm, with reflectivity exceeding 99%. The prism hypotenuse is coated with a wavelength-specific dielectric film, designed to reflect light incident on the hypotenuse from outside the prism at angles ranging from 0° to 45°, realizing efficient and accurate beam deflection.
Tuniu provides these dielectric film right angle prism mirrors in five standard sizes. For custom sizes, substrate materials, or coating specifications, please contact us.
Parameters
| Optical material | N-BK7 | Luminous aperture | 70% of the hypotenuse |
| Coating position | Hypotenuse coated | Reflectivity | Ravg > 99% |
| Dimensional tolerance | ± 0.1 mm | Angular tolerance | ± 3 arcmin |
| Surface flatness (@ 633 nm) | λ/10 | Surface smoothness (scratches/pitting) | 10/5 |
Model
| Size(L x hypotenuse), mm | Coating, nm |
| 5.0 x 7.1 10.0 x 14.1 12.5 x 17.7 20.0 x 28.3 25.0 x 35.4 | 400-750 750-1100 |
