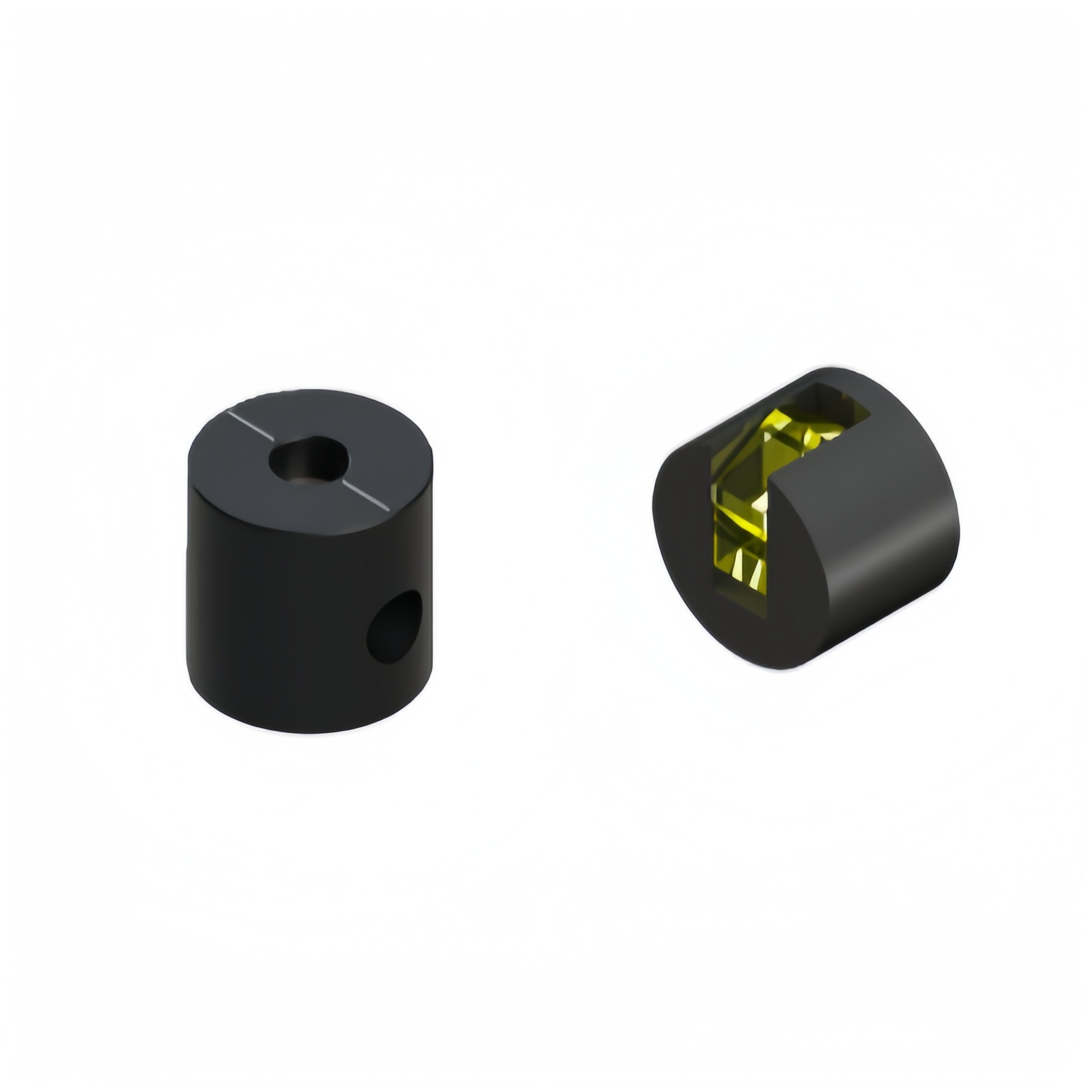

Glan Laser Polarizing Prism

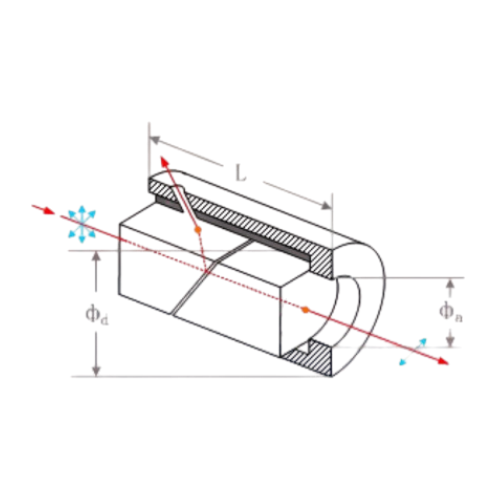

Glan laser polarizing prisms are applicable to laser beams in the wavelength range of 200 nm to 4 μm. The transmitted extraordinary ray (e-ray, P-polarized component) features an extinction ratio over 2 x 105, making it suitable for applications requiring high-quality polarized beams. The reflected light is partially polarized and exits through the side ports of the prism. This prism is only suitable for collimated incident beams. Convergent or divergent light will fail to satisfy the total internal reflection condition, causing the reflected light unable to emit from the side windows.
- Broadband high power polarizers for visible or near IR wavelengths
- Double escape windows for intracavity use
- Air-spaced
- Close to Brewster’s Angle Cutting
- High Polarization Purity
- Short Length
Specifications
| Material | a-BBO, Calcite, YVO4 |
| Wavelength Range | a-BBO: 220-3000 nm; Calcite: 350-2300 nm; YVO4: 500-4000 nm |
| Extinction Ratio | < 5 x 10-6(> 2 × 105) |
| Surface Quality | 20/10 |
| Wavefront Distortion | < λ/4@632.8 nm |
| Beam Deviation | < 3 arc minutes |
| Damage Threshold | > 5 J/cm2, 20 ns, 20 Hz@1064 nm |
| Coating | Single Layer MgF2, Tp > 85%@245nm, 300nm, 532nm, 1064nm Typical. |
| Mount | Black Anodized Aluminium, Dia. 25.4/30 mm |
Model
| Material | Wavelength, nm | Aperture, mm | Angular Field(°) | Outer Dia., mm |
| Calcite | 350~2300 | 8 10 12.7 15 | > 7.7° | Φ25.4 Φ25.4 Φ25.4 Φ30 |
| a-BBO | 220-350 | 8 10 12.7 15 | > 6° | Φ25.4 Φ25.4 Φ25.4 Φ30 |
| 350-700 | ||||
| 700-3000 | 8 10 12.7 | > 6° | Φ25.4 Φ25.4 Φ25.4 | |
| 700-3000 | 15 | > 6.5° | Φ30 | |
| YVO4 | 500-4000 | 8 10 15 | > 6.5° | Φ25.4 Φ25.4 Φ38.1 |
