Cemented True Zero Order Waveplate

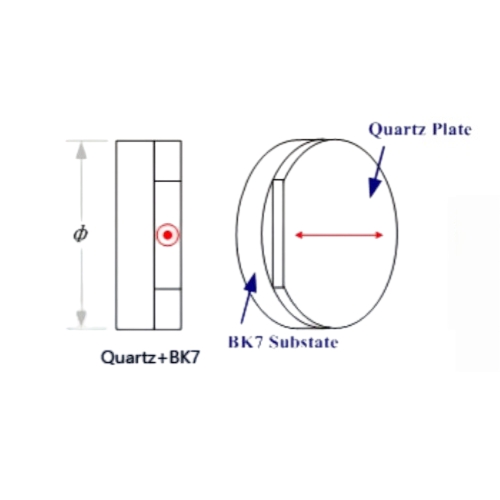

The thickness of a true zero order quartz plate is very thin, it is very easily damaged. In order to solve this problem, we can cement the thin quartz plate on a BK7 substrate to increase the strength.
- Standard Thickness: 1.1 ± 0.2 mm
- Epoxy Cemented
- Moderate Damage Threshold
- Better Temperature Bandwidth
- Wide Wavelength Bandwidth
- Good wavefront and parallelism
Specifications
| Material | Crystal Quartz + BK7 |
| Dimension Tolerance | + 0.0/ -0.2 mm |
| Surface Quality | 20/10 |
| Clear Aperture | > 90% central area |
| Wavefront Distortion | < λ/8@632.8 nm |
| Parallelism | < 1 arc second |
| Retardation Tolerance | < λ/300 |
| AR Coating | R < 0.25%@central wavelength |
| Damage Threshold | > 500 mJ/cm2, 20 ns, 20 Hz@1064 nm |
Model
| Dia.*, mm | Wavelengths, nm | Retardation | CA, mm |
| 12.7 | 633/690/780/795/852/ 894/935/1310/1550 | λ/2 | 11.5 |
| λ/4 | |||
| 25.4 | 633/770/780/795/808/ 852/894/1310/1550 | λ/2 | 22.9 |
| 633/650/770/780/795/ 852/894/1310/1550 | λ/4 | ||
| 38.1 | 633/780/795/852/894/1310/1550 | λ/2 | 35 |
| 633/780/852/894/1310/1550 | λ/4 | ||
| 50.8 | 633/780/795/852/894/1310/1550 | λ/2 | 45 |
| λ/4 |
* Other sizes upon request. Mounted Version upon request.
Coating Vs. Retardation Curve
