Economy K9L Wedge Prism
Optical wedge prisms are designed for small-angle beam deflection in optical systems, offered with standard wedge angles of 2° and 4°. They steadily deflect normally incident light by 2° to 4° after the light enters the prism’s vertical surface. A single wedge prism can be used alone for basic laser beam steering. When two wedges are applied as a paired set and rotated independently, the output beam can be accurately directed to any position within a conical range centered on the incident optical axis.
Parameters
| Material | Precision Annealed H-K9L | Surface Quality | IV |
| Diameter Tolerance | + 0.0/ -0.15 | Clear aperture | > 90% φ |
| Surface Accuracy | λ/4 | Coating | MgF2 AR coating |
| Angle Tolerance | ± 1′ |
Model

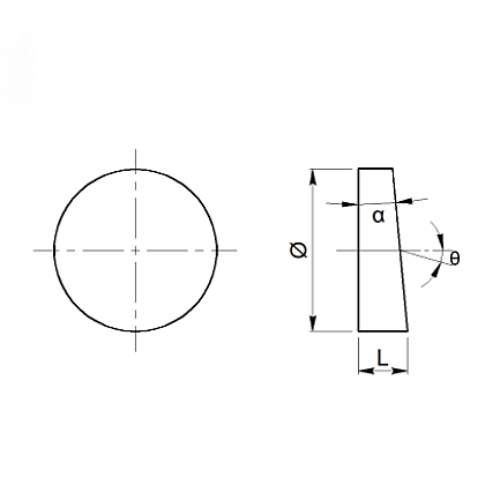

| Dia., mm | Wedge Angle(α) | Deflection Angle(θ) |
| Φ25.4/Φ38.1 | 2° 4° | 1°2′ 2°4′ |
