High Energy Nd:YAG Laser Mirror
Tuniu Optics provides standard high-power Nd:YAG laser line mirrors with 0° and 45° angles of incidence and a diameter of 25.4 mm. Featuring Corning 7980 fused silica substrates and ultra-hard dielectric coatings, these mirrors deliver high reflectivity and a laser-induced damage threshold of up to 40 J/cm² at designated wavelengths, making them ideal for laser processing applications. Custom Nd:YAG laser mirrors are also available to fulfill your specific requirements.
Parameter
| Material | UV Grade Fused Silica, Corning 7980 |
| Irregularity(P-V) | λ/10@632.8 nm |
| Clear Aperture | ≥ 80% |
| Surface Quality | 10-5 |
| Diameter Tolerance | + 0/-0.25 mm |
| Thickness Tolerance | ± 0.5 mm |
| Bevel | Protective Bevel |
| Damage Threshold | 40J/cm2@1064 nm, 10 ns, 20 Hz@AOI 0°, 30J/cm2@1064 nm, 10 ns,20 Hz@AOI 45° |
Model
| Size, mm | Wavelength | AOI |
| 25.4 | HR@1064 nm, HR@1064&532 nm, HR@532 nm, HR@355 nm, HR@266 nm | 0°, 45° |

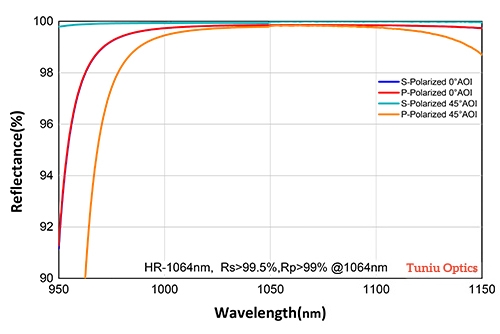

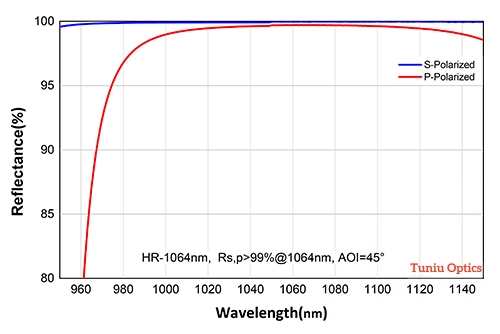

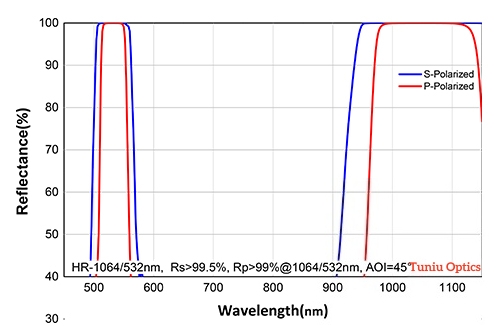

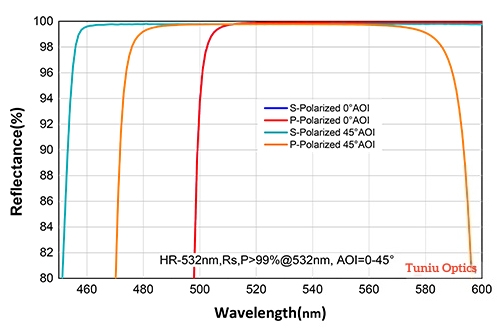

Curve Example
